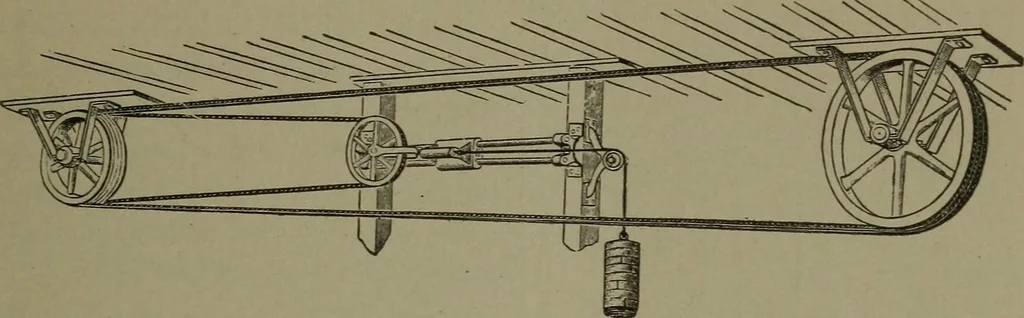

59. TRANSMISSION BY ROPE to a shaft atright angles to the driving-shaft. The guide sheavesgive direction to the rope over the curve face of thedriven pulley, the rope slipping towards the centreof the driven pulley. 60. TRANSMISSION BY ROPE toa portable drill or swing saw. D, driving sheave. A,… … 61. HORIZONTAL ROPE TRANSMISSIOiN, with tensionslide and weight.
