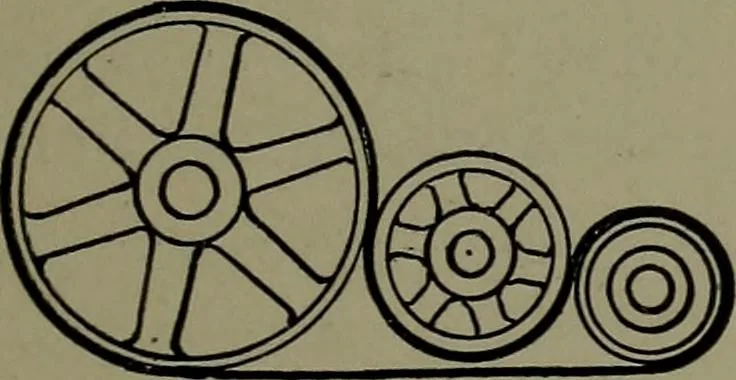

92. BELT TRANSMISSION, for short belt andclose connection. The belt is wrapped close to andpressed against the driven pulley by a tighteningpulley. For electric motor power or the driving ofgenerators. 93. BELT TRANSMISSION OFPOWER, at close range. A combinationof friction gear increased by belt… … 94. VARIABLE TRANS-MISSION OF MOTION,from an eccentric conicalpulley to a friction pulley.The riding pulley C traversesthe cone, which moves forward or backward by the rotation of thescrew in the nut stud E, producing a progressive variable motionin the pulley C, increasing or decreasing as the…
