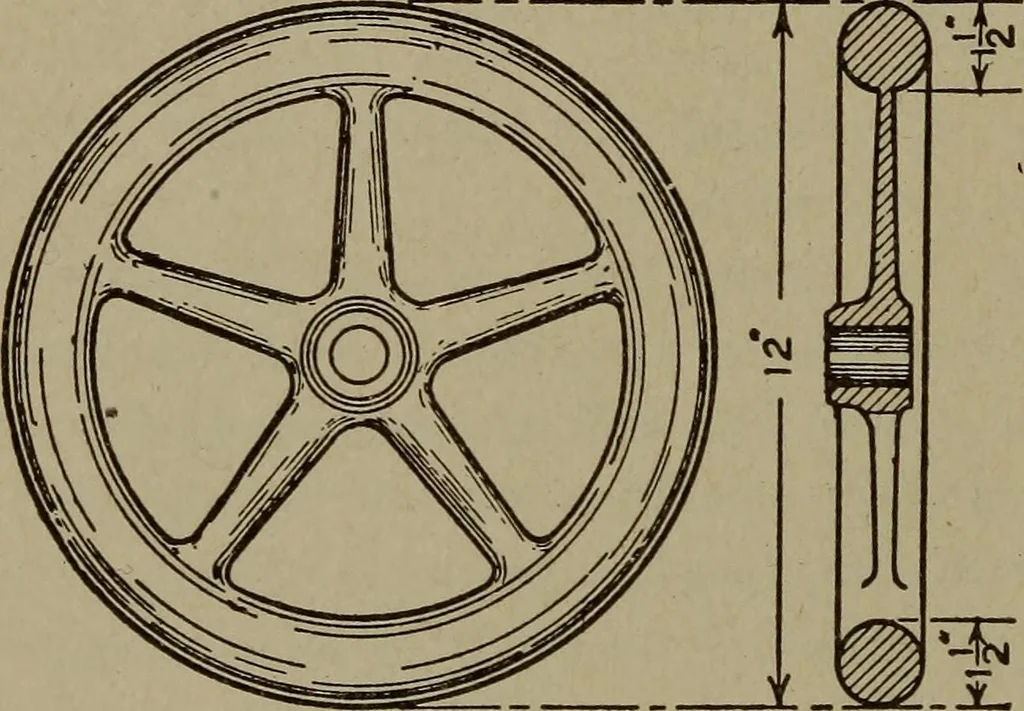

gether. After fitting, and before groovingwith the saw kerf, the joints must be glue sized and, when dry, care-fully scraped smooth with a sharp chisel. The grain of the wood inthe tongues must run at right angles to or crosswise of the joint toinsure the greatest strength. Laying Out Arms. When… … Fig. 170. Five-Arm Hand Wheel PATTERN MAKING 91 From the same center describe a circle 3| inches in diameter,forming the web of the arms; and from this 3|-inch circle, taper thearms to \ inch in thickness at the ends, care being taken to planethe same amount from each side, and to dress the arms…
