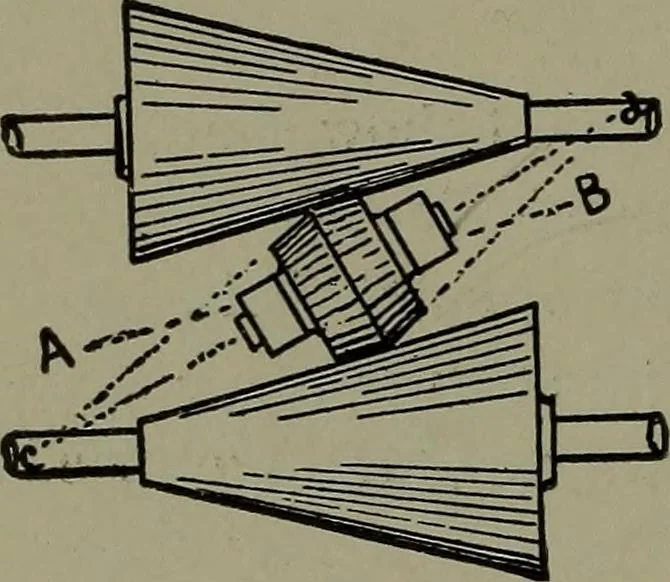

105. FRICTION GEAR, traversingmotion. A, the driver. B and C are faston the clutch sleeve which is free to slideon a feather on the driven shaft. The leverbrings B or C in contact with the drivingcone A for reversing. … 106. FRICTION GEAR. — Variablespeed from a pair of cone pulleys, one ofwhich is the driver. A double-faced frictionpinion is moved on the line A, B in contactwith both cones. A ff I to 107. FRICTION GEAR.—A pair of frictiondiscs A, B on parallel shafts out of line, with atraverse friction pinion on…
