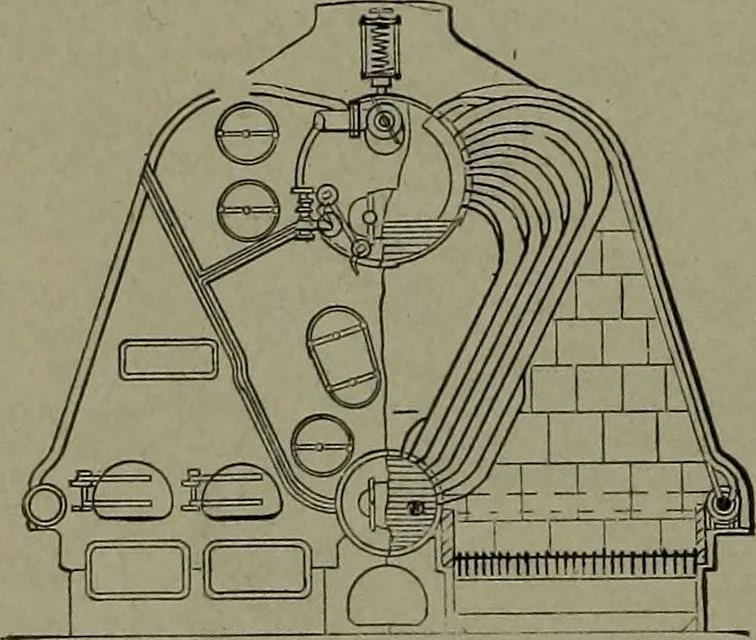

HERRESHOFF BOILER.—A horizontal volute coil at thetop acts as a heater. The innercoil is the evaporator; the outercoil is the superheater. A separa-tor entraps the water that may becarried over from the evaporatingcoil. BOTTOM BLOW, … i88. THORNYCROFT BOILER. -^A large steel drum above and a waterdrum below, connected with a large num-ber of bent tubes. The water return isthrough a large tube at the rear end ofthe boiler.
