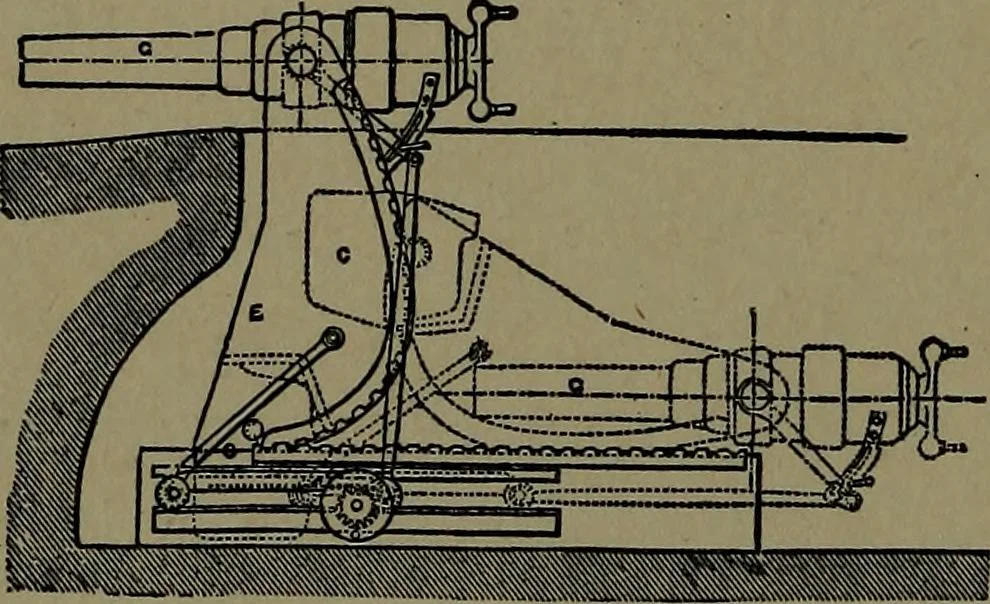

1649. DISAPPEARING GUN, Moncrief model. The cyclcidaicurved rack arm E is counter-weighted, which balances the re-coil of the gun by its increasedleverage. The small connectingrod, rack, and pinion adjust theguns alignment.
