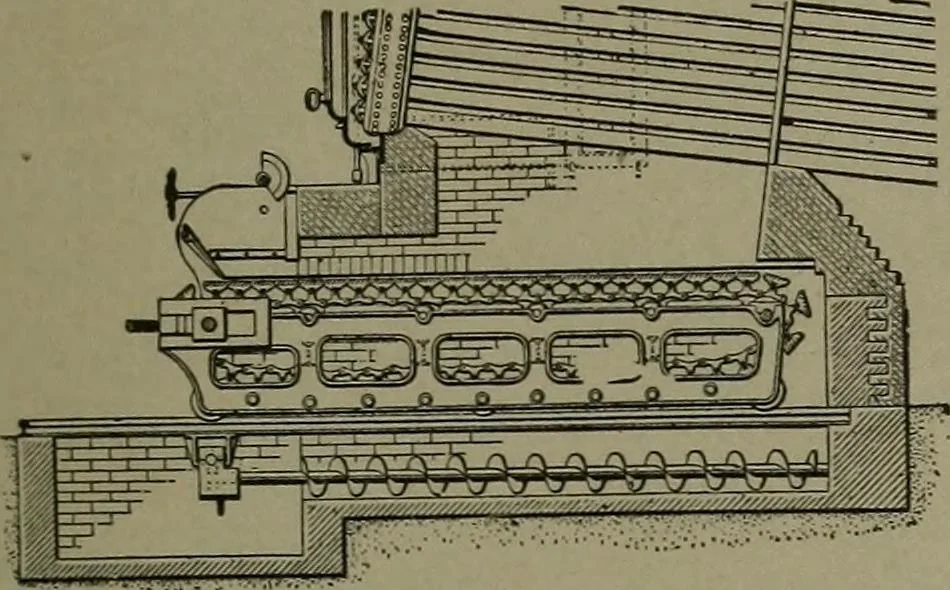

there is carried a chutewhich inclines upward into the fur-nace. A pusher pushes the coalupward along this chute and dis-underneath charges the burning fuel, displacing the latter and causing it to bulge upward and then slidedown the inclined grates. Air is delivered under pressure from theair… … 20^. PLAYFORD MECHAN-ICAL STOKER, for soft coal. Alink grate moved by a sprocket shaftcarries the coal, fed by a hopper,forward under the boiler, returningover a drum shaft at the bridgewall. A screw conveyer brings theash and clinker for^vard to the pit. 210.
