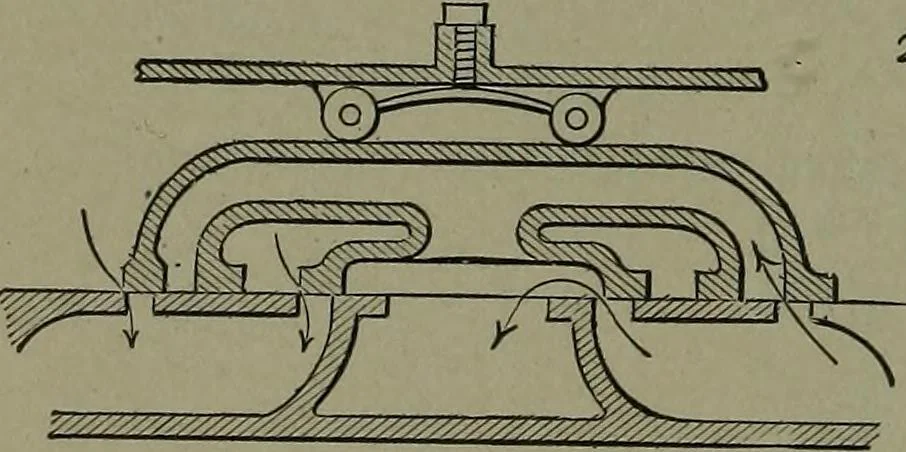

241. MEYER CUT-OFF VALVE.—C, D, Slide valve withperforated ports. The supplementary or cut-off valves are adjustedto the required distances, to m.eet the required cut-off, by a right andleft screw, which has an index H. and wheel G, for turning the screwfor cut-off adjustment on the outside of the… … 242. SINGLE D, SLIDE VALVE,with doutle steam and exhaustports. Central steam ports openinto steam chest at the side of thevalve.
