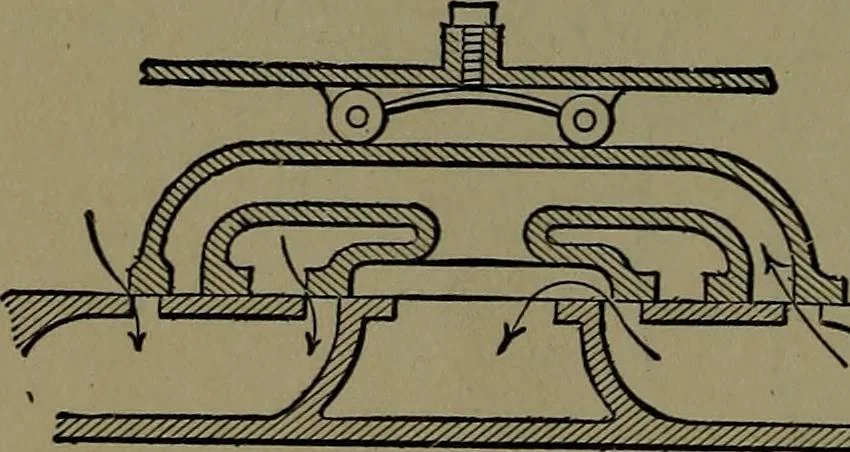

241. MEYER CUT-OFF VALVE.—C, D, Slide valve withperforated ports. The supplementary or cut-off valves are adjustedto the required distances, to meet the required cut-off, by a right andleft screw, which has an index H, and wheel G, for turning the screwfor cut-off adjustment on the outside of the… … 242. SINGLE D, SLIDE VALVE, with double steam and exhaustports. Central steam ports open-— into steam chest at the side of the> valve. -yy^^^^y/^y/^.M
