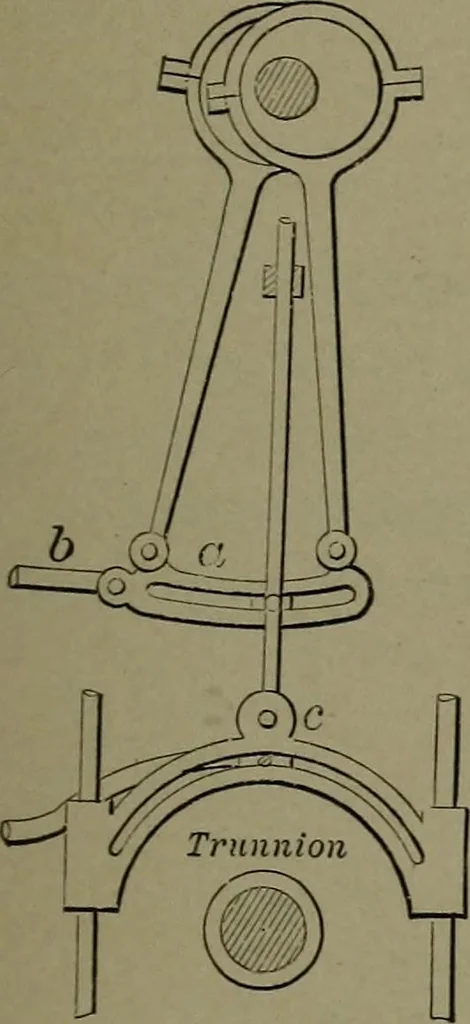

vsr/ REVERSING LINK MOTION. —The slotted link is pivoted tothe end of the eccentric rod and ismoved up and down by the bell-crank lever. The block carrying thevalve rod is stationary in the slot. … 256. VALVE GEAR of an oscillating marineengine. The slotted link a, receives a rockingmotion from the eccentrics and rods, and is thrownfrom its centre either way for forward or backmotion of the engine by the lever connecting rodb. A block and pin attached to the valve rodfreely traverse the link…
