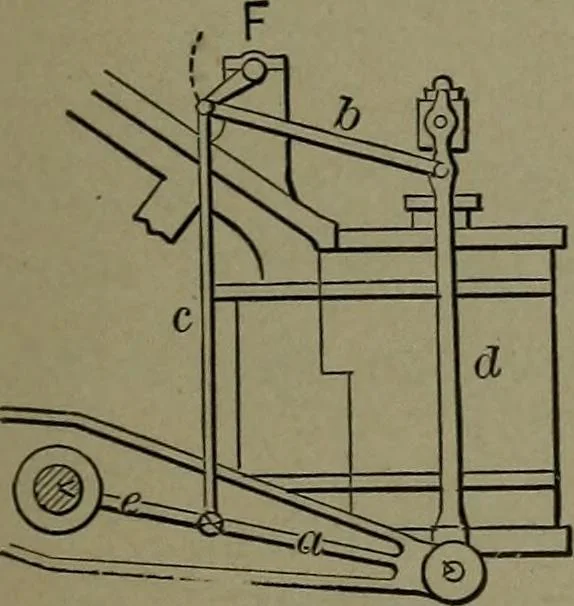

274. PARALLEL MOTION, used onside-lever marine engines.E, cross-head. C, F, radius bar. D, E, parallel bar. … 275. PARALLEL MOTION, for alever marine engine. a and b are of equal length.c and d are of equal length. Radius of rocker-shaft crank F =: — e side
