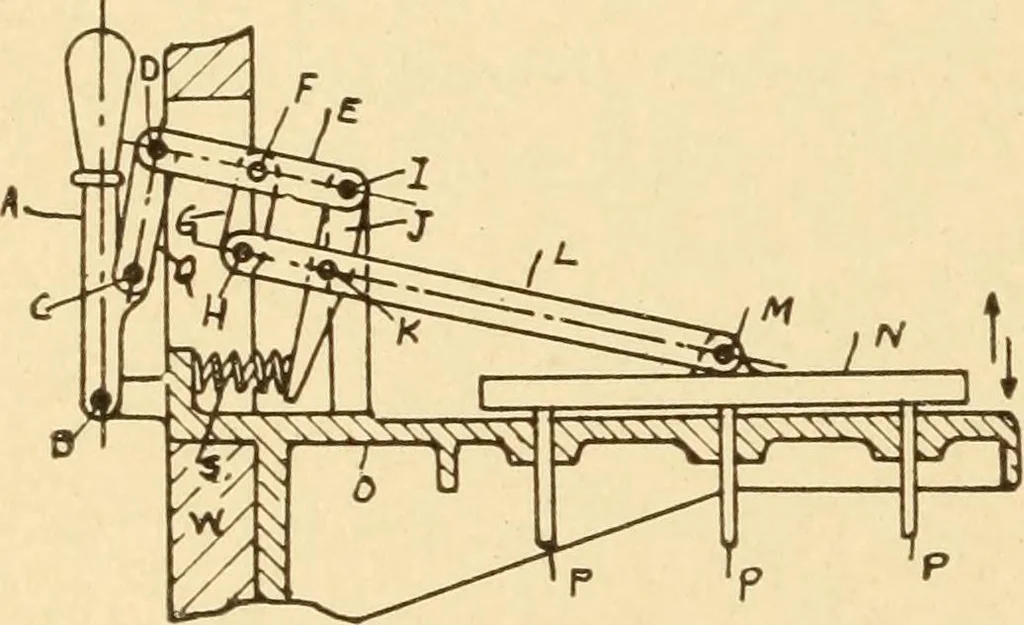

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox, 1914, leaf 413
at C, is con-nected to lever E at D.Lever E, connected to linkQ at D, is pivoted to frameO at / and connected to linkG at F. Link G, connectedto lever E at F, is connectedto link L at H. Lever /,pivoted to frame O at /, is connected to link L at i^ and has aspring 5 on its opposite end. Link L,… … INDEX. Accumulator, hydraulic 153 AcetjMene burners 393 Acetylene generators 392, 393 Air blast for moving coal 312 Air brake 178 Air compressing cylinders 174 Air compressor governor 175 Air compressors 170-174 Air cooling tower 116 Air dump, automatic 312 Air lift, compound Pohle 187 Air power…
