Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 94

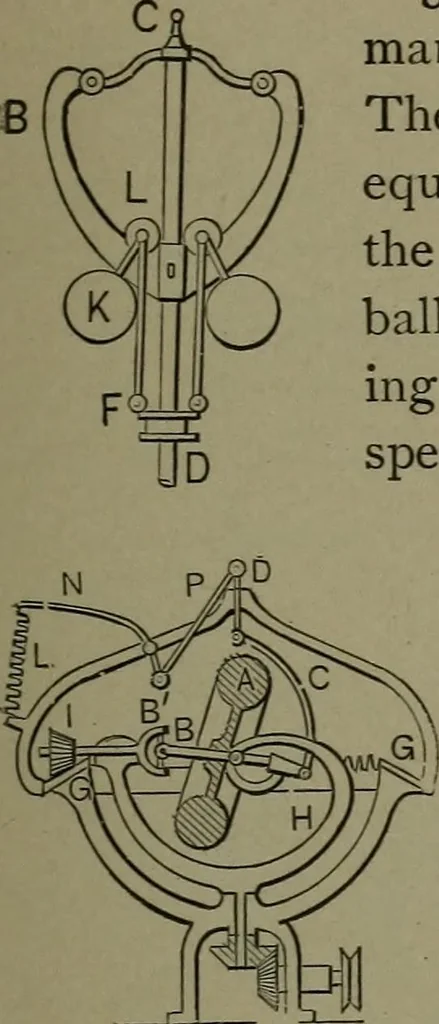

301. SPRING BALANCED CENTRIF-UGAL GOVERNOR, Proell patent—Thet^ ^-v balls are attached to the inverted arms b, b, and^1° y raise the collar sleeve by their outward throw.The movement is restrained by the vertical leafsprings and links. The lift is controlled by thecurved links hung from the cross… … 302. PARABOLIC GOVERNOR.—One of themany curious devices for governing steam engines.The paraboUc form of the guide arms is intended toequalize the motion of the grooved sHde by modifyingthe effect of centrifugal force in the position of theballs. Also called an isochronous governor, produc-ing…
Mechanical movements
