Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 95

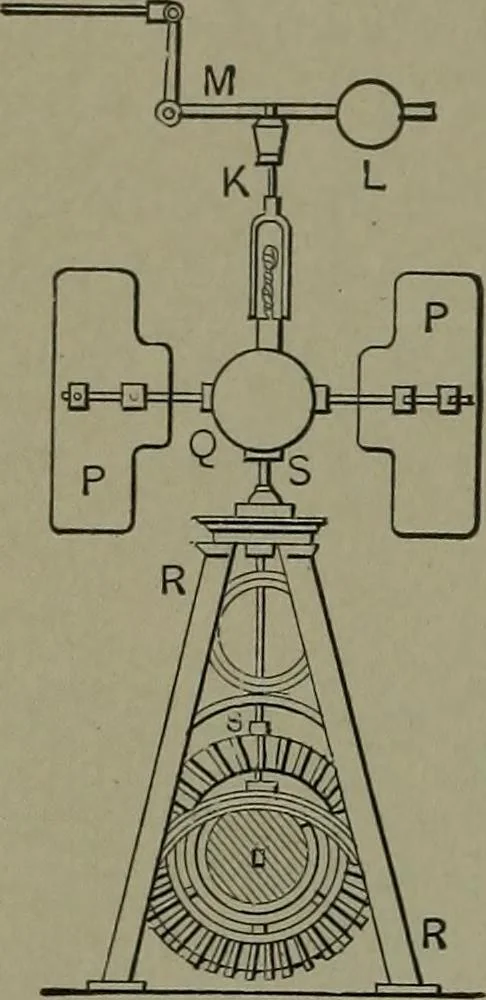

86 STEAM POWER. … 305. VANE OR WING GOVERNOR.—The resistance of the vanes P, P to the air bytheir variable speed from the engine gear, lifts ordepresses the ball Q, connected with the wings, bymeans of a quick-pitch thread and nut on therevolving spindle, .causing a movement of theweighted bell-crank lever M, L, and…
Mechanical movements
