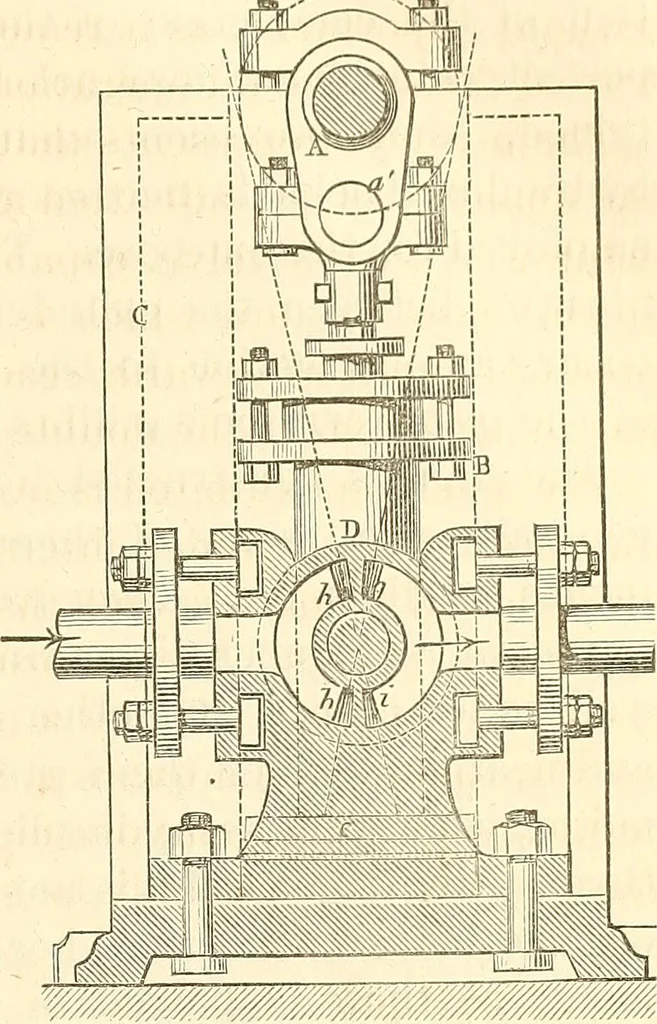

RAMSBOTTOMS WATER-ENGINE. 107 Fig. 30. … vertical, and shows the mode of suspension of the cylinders, and thechannels of induction and eduction, which are marked j, and whichare cast with the cylinder. The dottedcircle c shows the position of the supplyand discharge pipes. Fig. 31 shows across-section of the cylinders and theirpivots, and…
