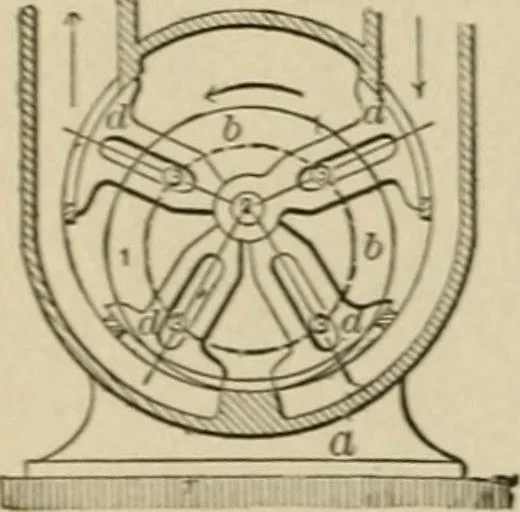

2,2)S- ROTARY ENGINE, with concentric shaftand wing barrel. The two wing slides pass throughcylindrical rockers to give the slides a slight oscillat-ing motion; slides are kept extended by pins tra-versing a circular slot concentric with the shell. … S36. SMITH ROTARY ENGINE.—Four arms with cylindrical sectors are rotatedaround an axis central to a perforated cylindricalshell. The driven shaft and head discs are ec-centric to the shell. The pressure of steam be-tween the wings tends to push them apart, bywhich the differential leverage on the…
