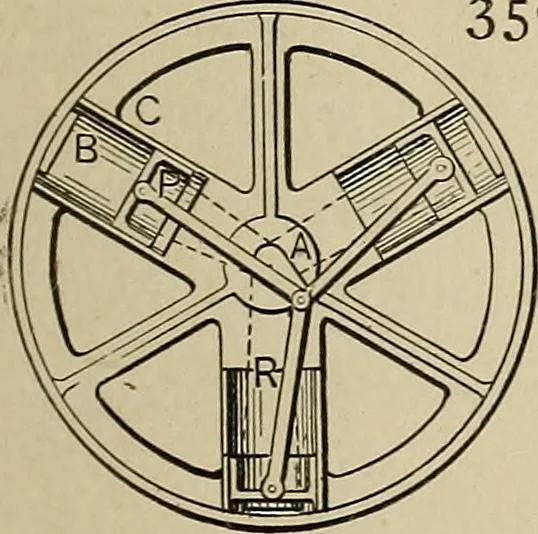

349. ROTATING CYLINDER ENGINE.—The cylinder rotates on trunnions with athrough piston rod terminating with rol-lers running in an oval ring. Steam andexhaust ports in the trunnion. Pressure ofthe piston-rod rollers on the oval ring re-volves the cylinder and fly-wheel on itsrunnion. … 350. ROTARY MULTI-CYLINDER ENGINE.— Three or more cylinders are attached to and re-volve with the fly-wheel. The crank is stationaryand eccentric to the fly-wheel. Each cylinder issingle-acting. Valves are on a central disc at A. 96 STEAM POWER. 351. BATES COMPOUND VIBRATINGENGINE.—The upper…
