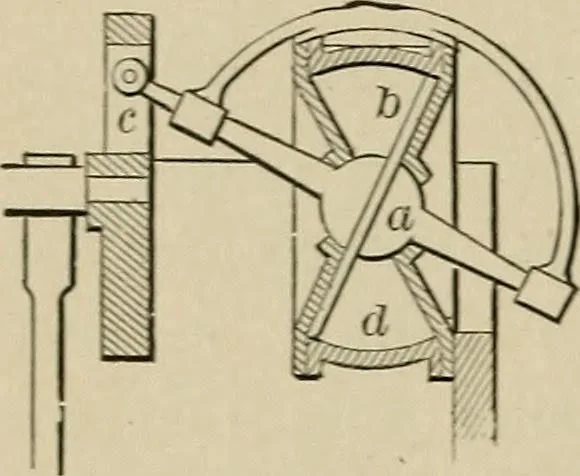

352. DAVIES DISC ENGINE.—Adisc, h^ is fixed to an oscillating shaft, a^]~7v J \J13^>^A^\\ which swings in a circuit pivoted in the disc It-?^ crank, c. The cylinder heads are cones inthe apex of which the.ball bearing of theshaft oscillates. The outer shell of the cyl-inder, d^ is spherical over…
