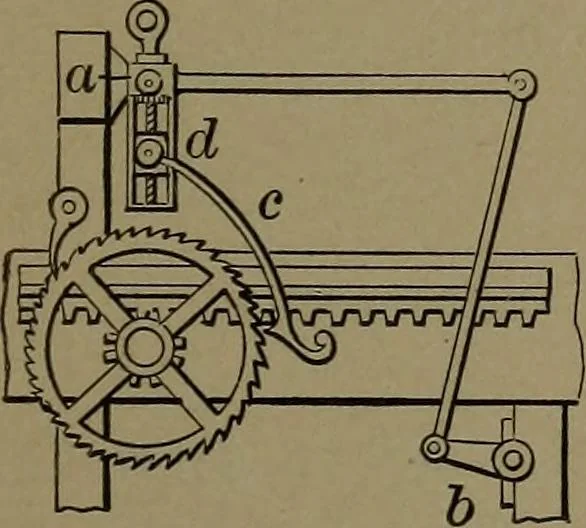

88^. SAWMILL FEED.—By the revolu-tion or rocking of the crank <^, the adjustablebell-crank lever a is vibrated, which gives thehook pawl c the desired motion to turn theratchet wheel and pinion which, meshing inthe log bed-rack, feeds the log to the saw. Therate of feed is adjusted by the screw…
