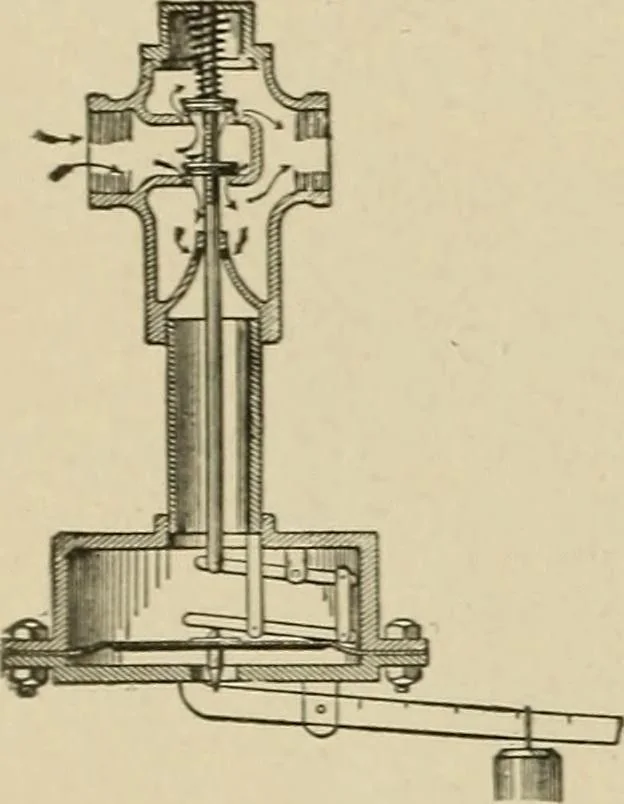

398. EXHAUST JET CONDENSER.^The exhaust steam passes through a cyhndri-cal nozzle and meets a thin annular stream ofwater at the mouth of a funnel-shaped nozzle.The converging sheet of water condenses thesteam, and prevents back pressure by itsvelocity through the narrow end of the nozzle. … 399. BALANXED REDUCING VALVE.— The spindle of the balanced throttle discsis attached to a large diaphragm by levers, andcounterbalanced by an outside lever withmovable weight for adjustment of the reducedpressure. ^
