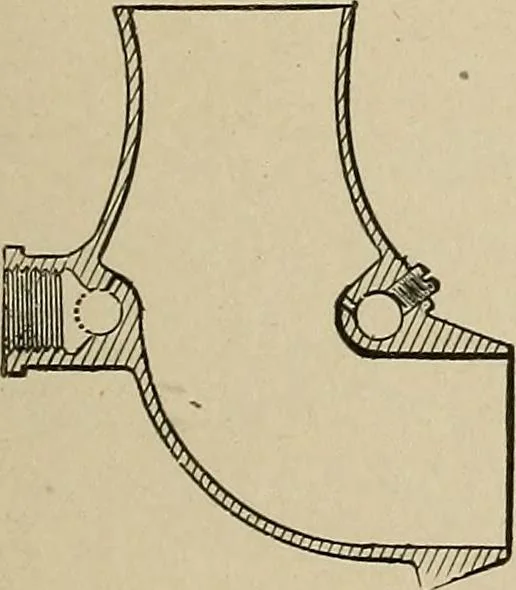

An illustration from Mechanical movements, powers, devices and appliances;, 1903, leaf 124 — 421b. THE EDWARDS AIR PUMP.■—Has no suction valves. The ports in thecylinder are opened by passing the pistonto the bottom of the cylinder. The waterand air enter above the piston and is dis-charged above. The discharge valves aresealed by water held back by the dam.The piston rod is sealed by a… … 421^. STEAM SOOT SUCKER forcleaning boiler tubes by drawing the sootand ashes from the tubes by an annularsteam jet. ii6 STHA.M ArPLlAXCES.
