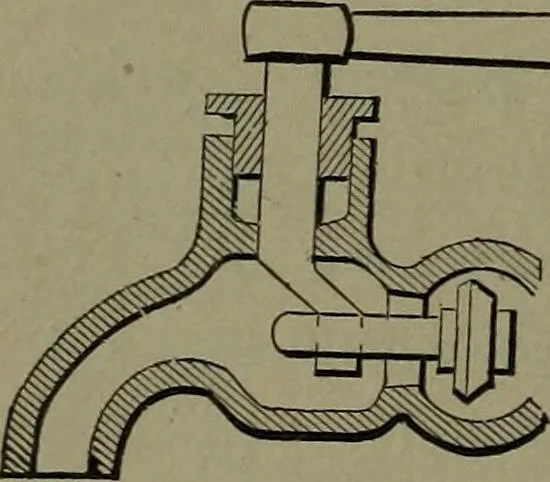

589. UNIVERSAL PIPE JOINT.—The flangesare faced at 45° to the line of the pipe, with athrough bolt at right angles to the faces of the flanges.The joint may be made at any angle up to 90°. I <v^^^^xyy.<g^^^^y/x;;^^\\\\v^^^ ^^^^^^^yyyyyyyy^yy^. -S.Vs\--,\V\\\-^V^VssV^N<^v 590. TOGGLE CLIP… … ^ 591. BIBB, with crank-moved valve open-ing against the pressure.
