Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 149

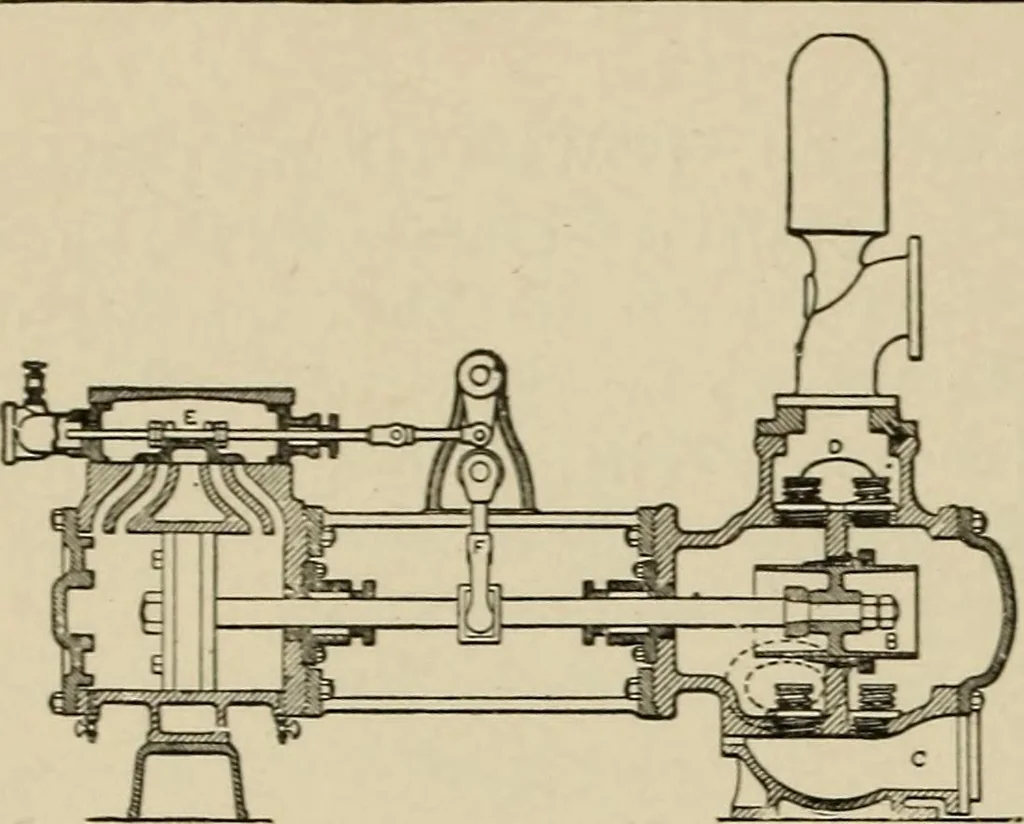

for alternating the strokes of the pistons. 505. DEAN STEAMPUMP.—The valve gearof the Duplex pump. Alever and rock shaft, movedby a spool on the connect-ing rod, operates the valveof the opposite cylinder, 140 HYDRAULIC POWER AND DEVICES. … 506. WORTHINGTONDUPLEX PUMP. — Tworock shafts with arms movedby the opposite piston rodalternate the valve motionsand strokes. The water pis-ton is of the plunger form.
Mechanical movements
