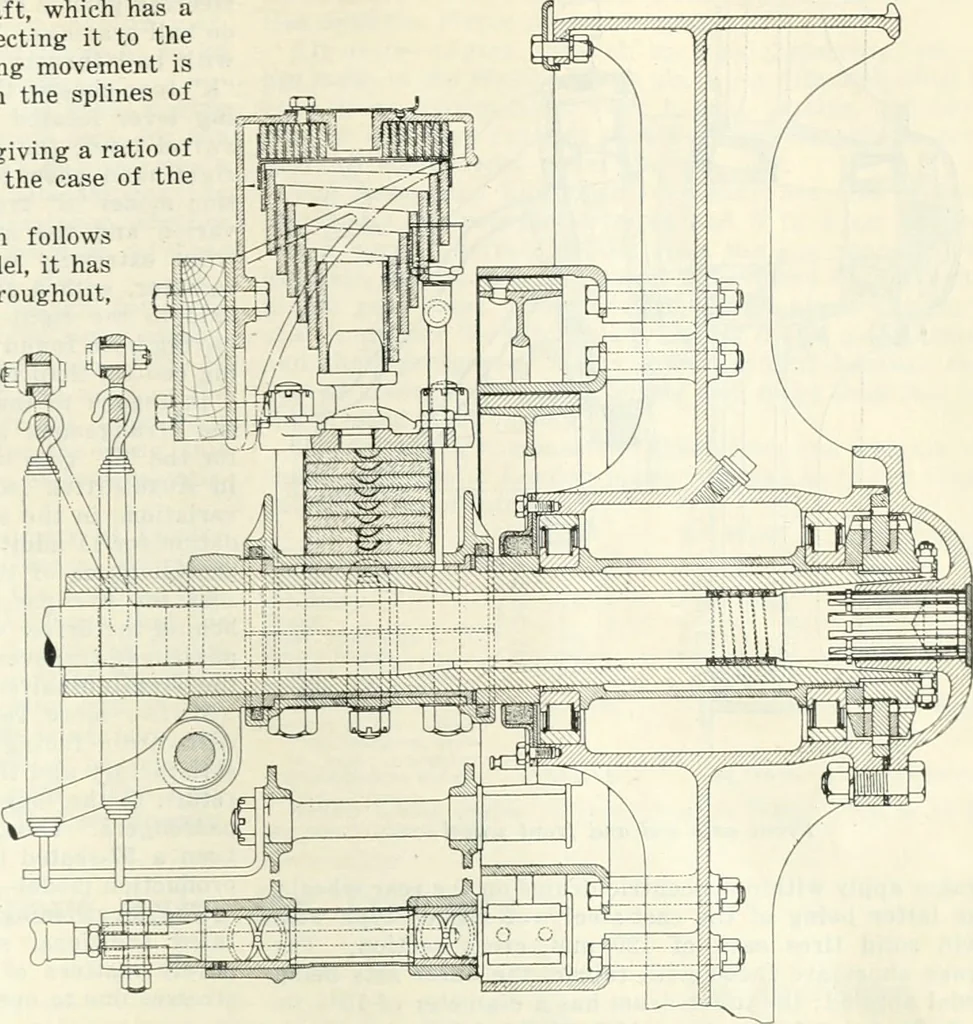

en bronze blocksin which it can slide fore and aft orpartially rotate, these blocks beingsupported above and below by rubberbuffers in the supporting bracket.The plate is of spring steel, and thesliding motion permitted in its an-chorage and the lateral give of the plate allow for axle movement due… … Rear axle end, spring and cast steel wheel withdrawn. The latter have splined outer ends engagingwith the hub caps which convey the drive to the wheelhubs, the latter, as already mentioned, being mounted onwidely spaced (7-in. centers) straight roller bearingsof which the rollers are % in. in…
