Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 154

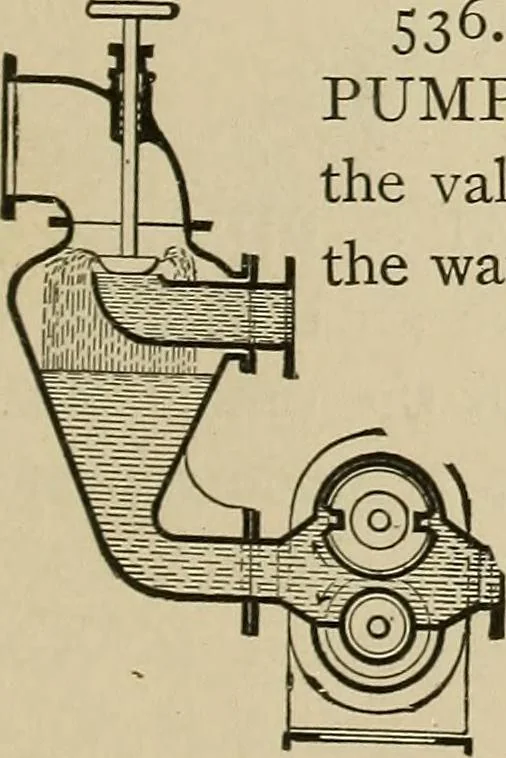

535. GARY ROTARY PUMP.—A rotat-ing drum concentric with the outer fixed cylinderand a fixed heart-shapedjcam groove in which thesliding wings are guided. A stop, E, closes thesuction and force side of the chamber. The formof the outer cylinder wall is spiral. … 536. VACUUM JET CONDENSER AND ROTARYPUMP.—The jet in the vacuum chamber is regulated bythe valve. The rotary pump, being entirely immersed inthe water below, is water-packed. «o 146 HYDRAULIC POWER AND DEVICES.
Mechanical movements
