Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 156

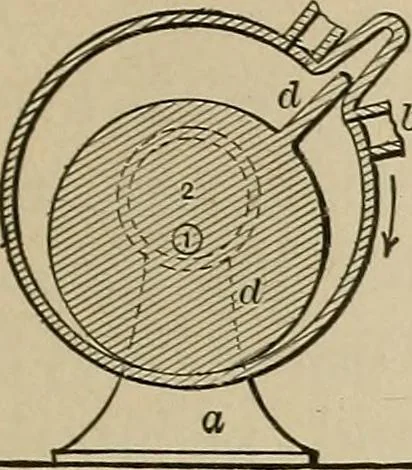

541. PATTISON ROTARY PUMP.—Ahollow winged cylinder in which an eccentric isrotated on an axis central with the outer shell.The piston and socket serve as a guide for the win. HYDRAULIC POWER AND DEVICES. 147 … 542. COCHRANE ROTARY PUMP.-A b slide pocket in the outer shell receives the piston11 wing of the inner eccentric cylinder, which swings in contact with the shell on its centre, 2, carried around by a cam crank.
Mechanical movements
