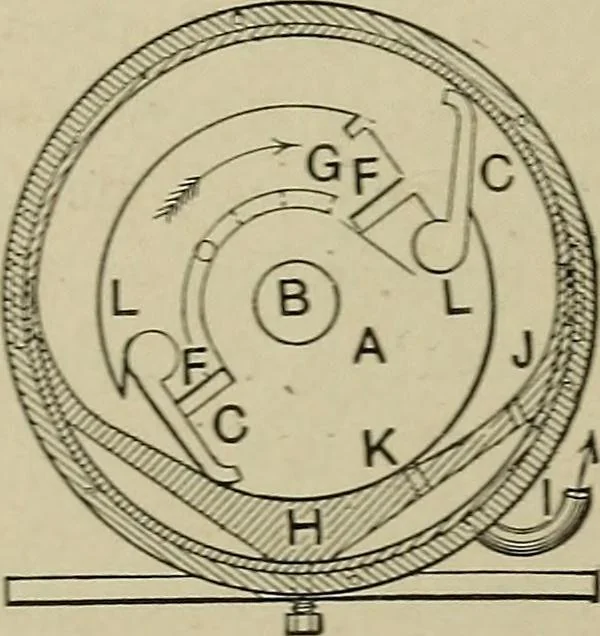

n ring is obtained. 2-^2. Vertical section, showing details of the parts. CM- ROTARY STEAM ENGINE. A cylindrical piston A.with wing abutments C. C. A double cam block H. made adjustable by a set screw and with exhaust ports at Kand I. A steam port through the cylindercover and a curved passage in… … 254. ROTARY ENGINE. Recesses are formed in tne pistonhaving an S-shaped partition between them, the recesses opening at opposite ends of the piston intothe steam chests, and bv means ofports into an annular space be-tween the casing and piston. Thepiston has an eccentric portionwhich has a perfect…
