Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 183

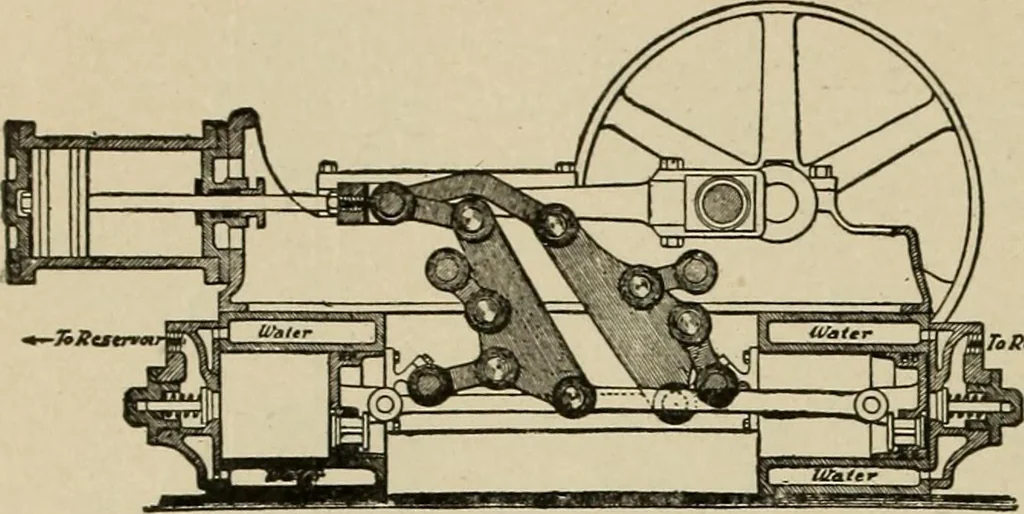

piston, and is forced through the valve D and pipe to the high-pressureinlet valve G; it is further compressed and delivered through the valveA, and passage L. Both pistons are single, acting in opposite directions^ ^74 AIR POWER APPLIANCES. … 647. DUPLEXAIR COMPRES-SOR, with parallelmotion beams totwo single-acting aiicylinders from a.double-acting steamcylinder. N. Y.Air Brake model.
Mechanical movements
