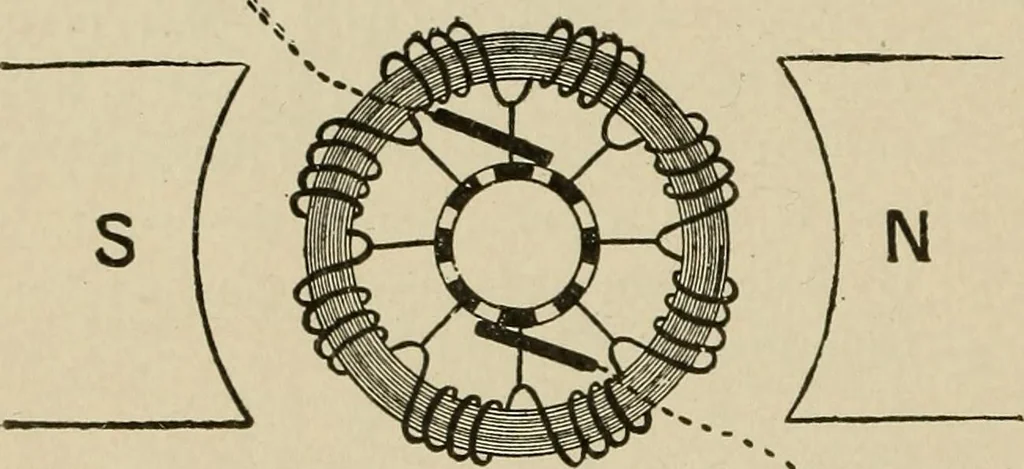

707. FOUR-POLE RING ARMATURE,showing intermediate connections with thecommutator bars from a continuous windingor closed coil. … 708. RING ARMATURE.—Method of continuouswinding and sectionalconnections with thecommutator. The dot-ted lines are the circuitconnection with thebrushes.
