Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 232

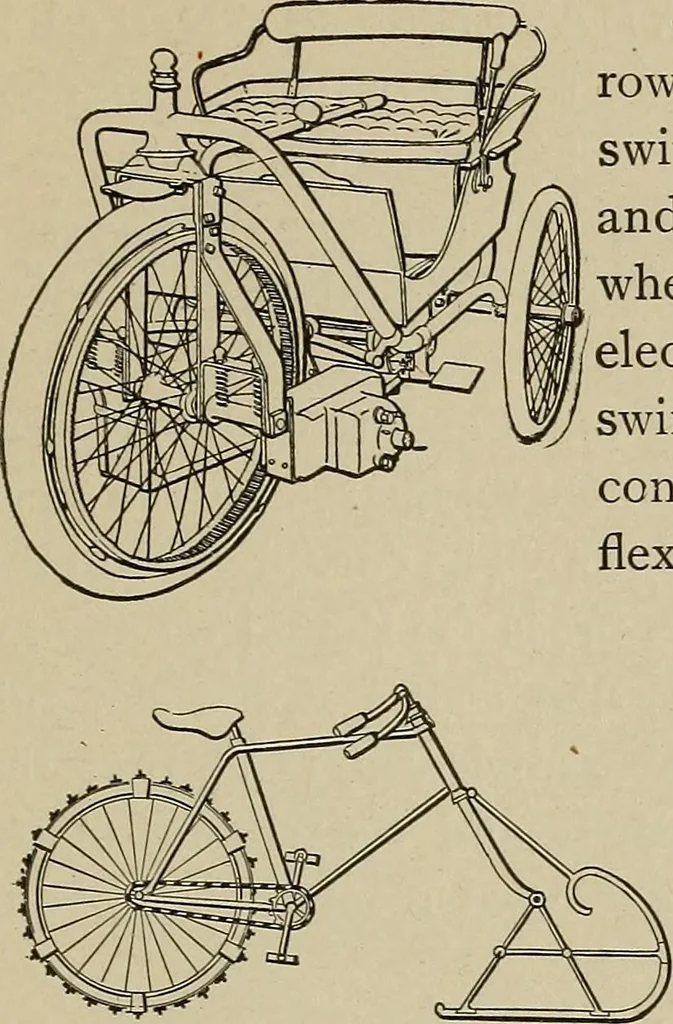

862. BABY-CARRIER TRICYCLE.—An extension of the driving axle of anordinary bicycle, with a supplementarywheel to balance and for safety, so thata convenient vehicle is made for carryingchildren or packages NAVIGATION AND ROADS. 22 … 863. ELECTRIC TRICYCLE, Bar-row pattern. The single forward wheel isswivelled to the vehicle frame for steeringand is also the driving wheel. It has a spurwheel on the inside of the rim in which theelectric-motor pinion meshes. The motorswings with the steering-wheel frame, and isconnected to the…
Mechanical movements
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
