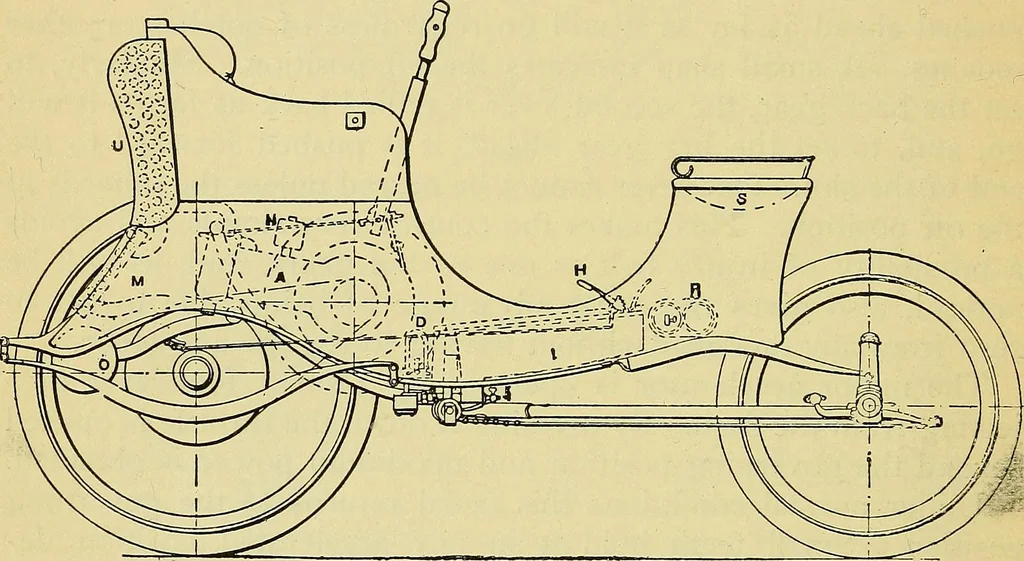

cribed, is placed beneath the drivers seat withthe change-speed gear and other moving parts. This change-gear, or power drum, as already explained, allows two forwardspeeds and a reverse, although all ordinary driving is done on thehigh speed, the parts of the power gear being stationary… … Fig. 311.—Elevation of the Duryea Three-cylinder Car. A, the motor; D, themagneto generator; H, brake pedal; I, gasoline tank; M, tubular panelfor passage of water from tank, V, to water jacket; N, oil cup on motor;O, muffler; R, 6-cell battery; S, extra seat in front; U,. cellular watertank,…
