Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 267

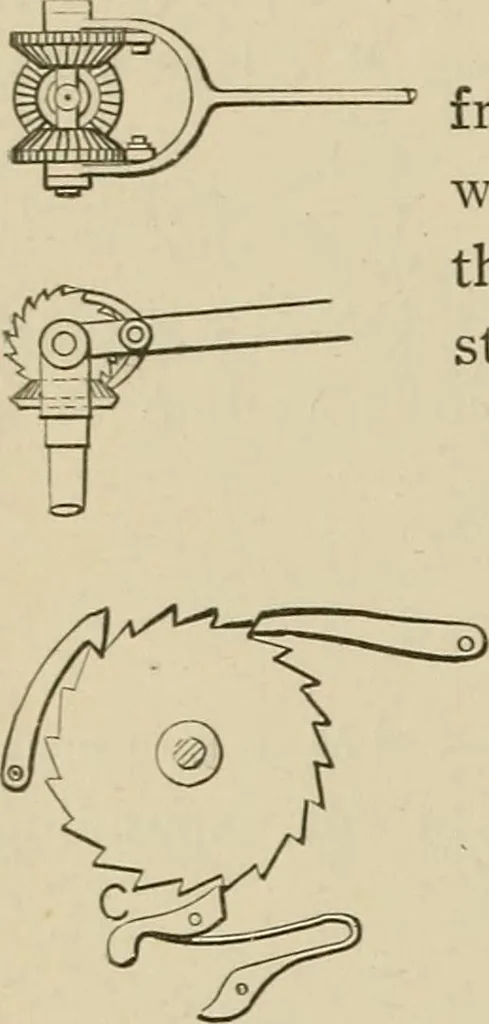

withthe pawls throw one or the other pawl out of lockfor reversing the motion. 1020. RECIPROCAL CIRCULAR MOTION from rec-tilinear motion of a nut on a quick thread. The reciprocat-ing or Persian drill stock. The screw is swivelled in thehead of the stock, allowing a free movement of the drill bythe… … 1022. CONTINUOUS MOTION RATCHETfrom an oscillating arm. Three bevel gears, two ofwhich have ratchets with pawls on opposite sides, sothat there is a forward motion to the spindle at eachstroke of the arm. 1022 a. Elevation. 1023. STOPS OF VARIOUS FORMS fora ratchet wheel. Hook and straight gravity…
Mechanical movements
