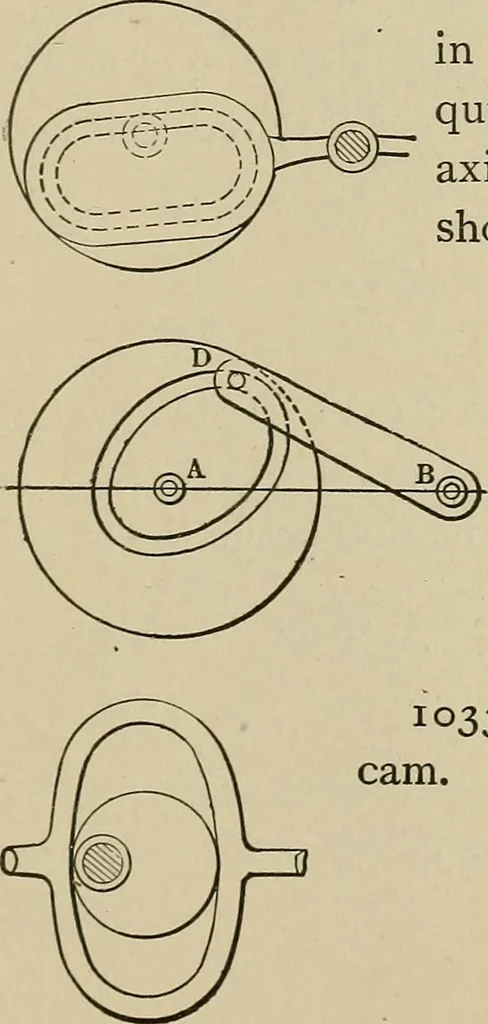

1029. STOP MOTION from a wrist or crankpin. The relative amount of stop and motiondepends upon the diameter of crank-pin circleand length of the connecting-rod slot, plus thediameter of crank pin. Used in brick machines. 1030. VARIABLE RECIPROCATING MOTIONfrom the circular motion of a wrist pin on… … 1031. IRREGULAR ROCKING MOTION in an arm having an endless groove of any re-quired shape, with the radius of the longitudinalaxis equal to the radius of the pin. Pin notshown. 1032. ROCKING ARM by cam groove.A groove in a face plate may be so designedas to give a variety of movement to a rockshaft,…
