Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 294

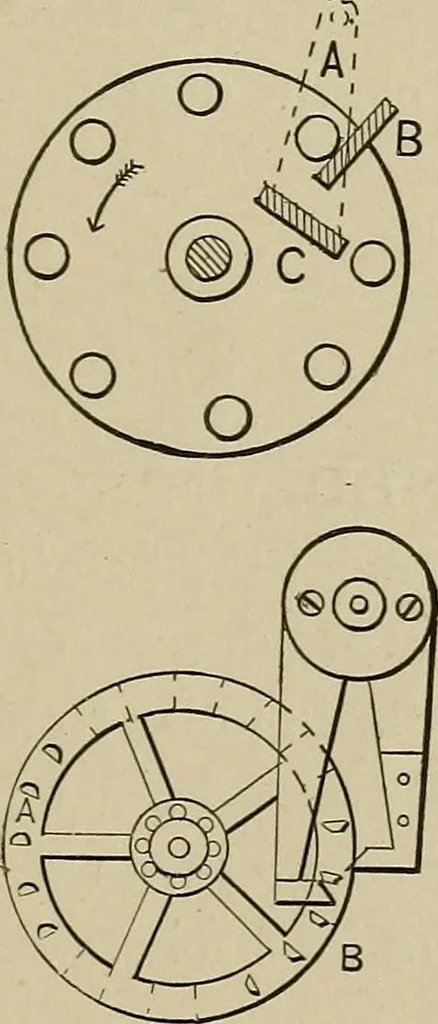

in a ring aroundthe escapement wheel, with pallets A, B projecting in-ward and with a forward pitch to their face, to give thdproper impulse to the pendulum. 1157. STUD ESCAPEMENT, used in.large clocks. Alternate studs are set on front,and back of the escapement wheel. The pen-dulum swings on the… … 1158. LANTERN-WHEEL ESCAPEMENT. —The pallet arm A is attached directly to the pen-dulum, swinging upon the axis A, and receives itSvimpulse from the inclined faces of the pallets C, B..Used for large clocks. 1159. PIN-WHEEL ESCAPEMENT, with a.dead-beat stop motion. For short-beat pendulum,clocks.…
Mechanical movements
