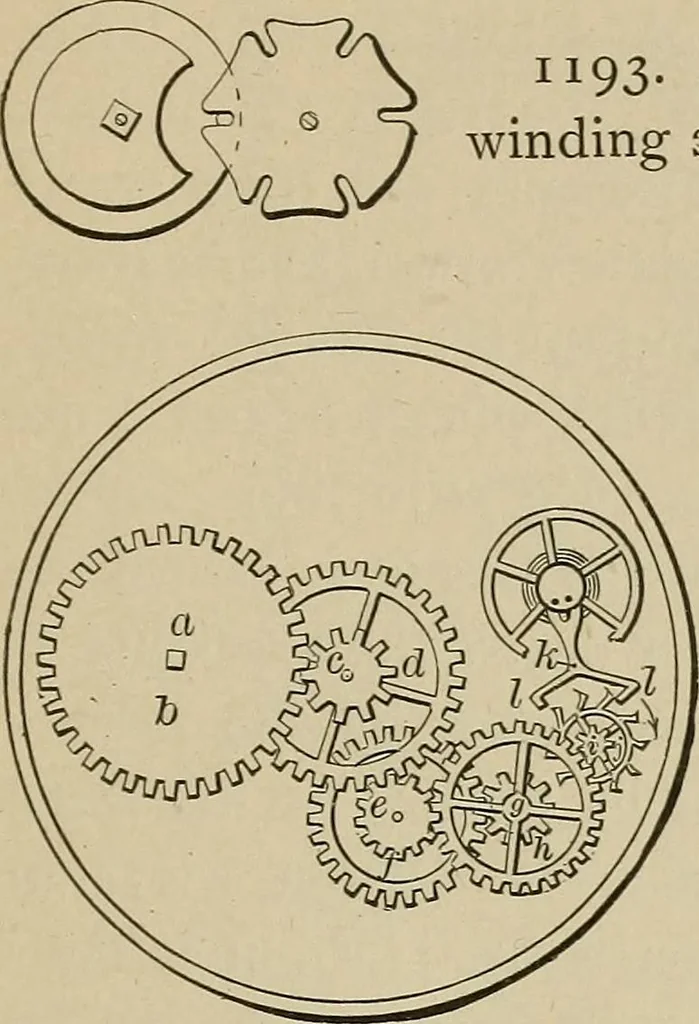

1191. WATCH STOP.—The number of turns of theratchet pinion is limited by the number of teeth in thestop. The pin moves one tooth for each turn. 1192. STEM-WINDINGMOVEMENT of a watch. Themovement of the lever with anarm outside of the rim locks aclutch on the hand gear. Thethird arm of the lever is… … 1193. PIN-GEARED WATCH STOP. —The winding stops at the convex tooth of the stop. 1194. WATCH TRAIN. a^ key stem. b^ barrel and spring. c^ e^ h, i, pinions. d, h, spur wheels. - /, /, pallets and escapement. kf lever and balance wheel. 1194a. EQUATED SUNDIAL.—The curved bulbs onthe shadow stile are…
