Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 309

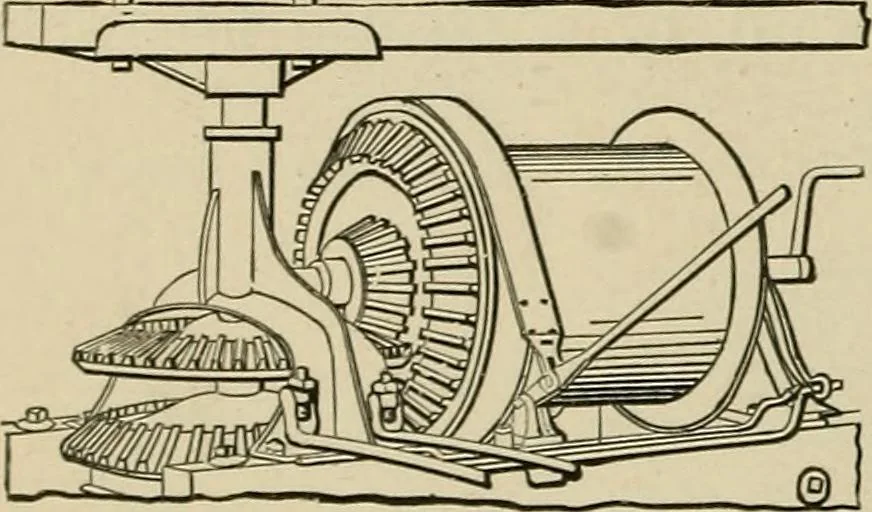

1208. STEAM-DRIVEN VENTI-LATING FAN.—Type of those used inthe coal-mining districts. The fan wheelmay be encased in an iron or wooden sliell. 1209. MINERS SAFETY LAMP.—The flameis surrounded with wire gauze and a double wiregauze cap. In explosive mine gases, the firing ofthe incoming air and gas… … 1210. HORSE-POWER HOIST-ING DRUM, double speed. Thespeed is changed by dropping oneor the other driving gear by the le-vers. A release for running back ismade by turning the crank whichdisengages the gear clutch.
Mechanical movements
