Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 335

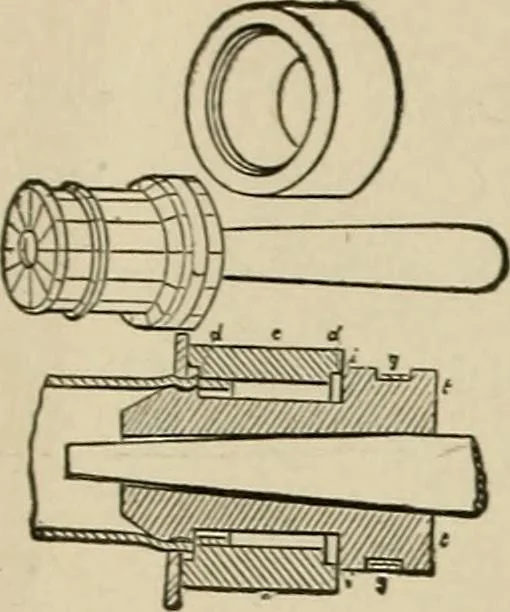

1332. WOOD- BENDINGCLAMPS AND FORMERS.— Strips of wood are thoroughlysteamed and bent while hot overthe formers and clamped. 133 2 A. Offset clamp. 1333. Thill clamp. 1334. Bend clamp. 326 MILL AND FACTORY APPLIANCES. … 1335. BOILER TUBE EXPANDER.—A series of sets surrounding a conical driving pin. Prosser percussion type. A guard ring fixesthe proper position of the expanding grooves ofthe sectional sets to match the tube head. 1336. Longitudinal section.
