Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 335

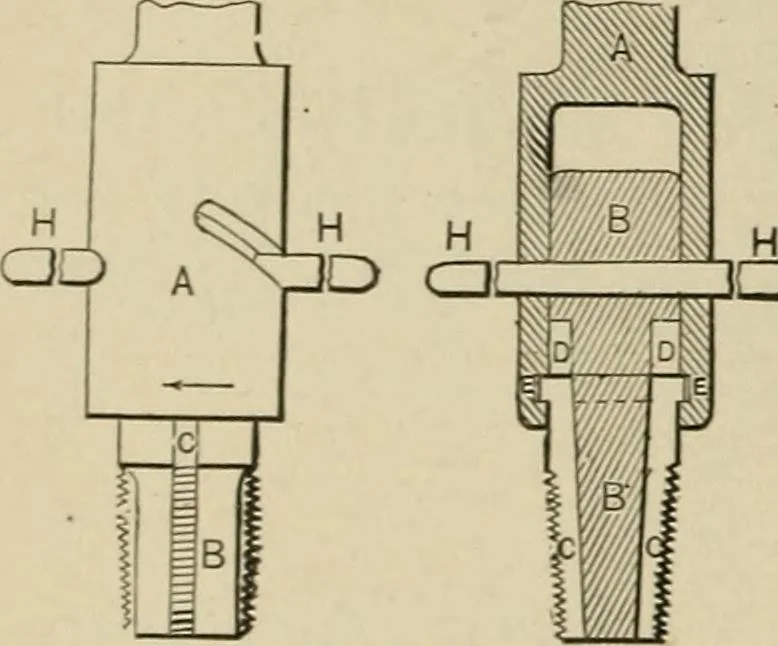

1338. REVOLVING TOOL HEAD, for a Monitor lathe. … 1339. COLLAPSING TAP.—Thehook cutters C, C, slide in the tapershank B, and are drawn up to their full O diameter for cutting by turning the shankhandle in the inclined slot in the shell,and the reverse motion of the handlefor collapsing the tap. 1340. Longitudinal section.
Mechanical movements
