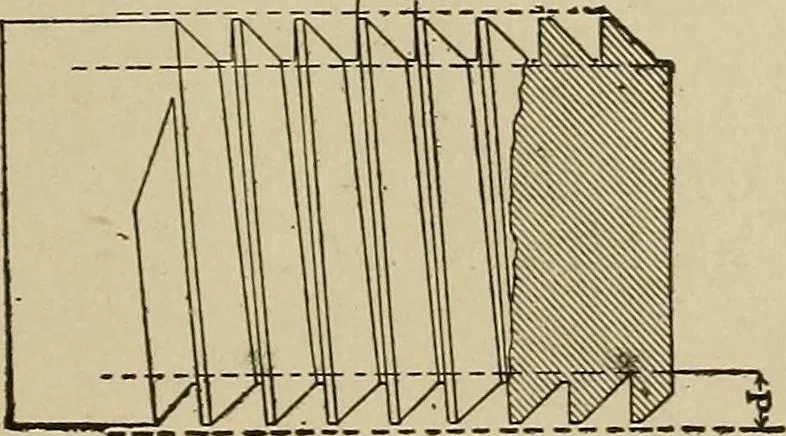

1399. SCREW THREADS.—UnitedStates Standard Thread. Flat top andbottom. Depth equals 0.65 of the pitch.Angle 60°. 1400. SCREW THREADS, Whit-worth thread. Rounded top and bot-tom. Depth equals 0.75 of the pitch.Angle 550. TRAPEZOIDAL ^-p^-,THREAD I 1 … 1401. SCREW THREADS, Trape-zoidal thread. Angle 90° face, 45° back.Depth equals 0.75 of the pitch. 35^ MILL AND FACTORY APPLIANCES.
