Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 357

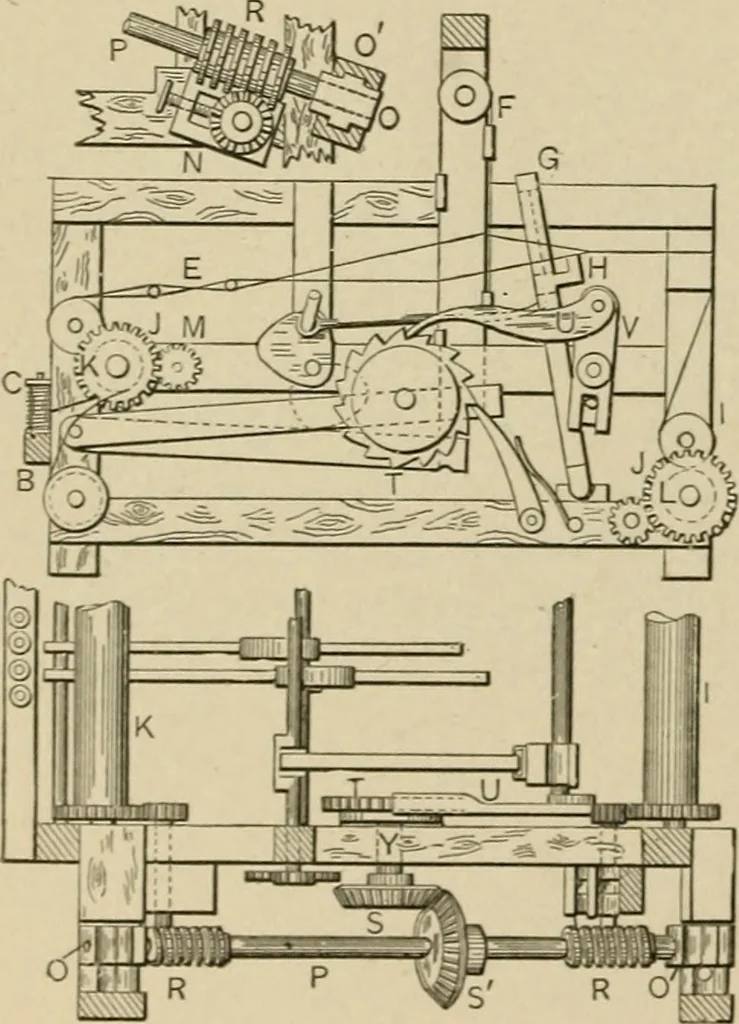

hHorizontal section and plan. 1443/l TAivE-UP AXD LET-OFF :M0TI0X FOR LOO^IS. —The detailed parts are:Take-up roller L let-ofT rol-ler K. a pawl U pivoted tothe vibrating lever \^ operatedby the shuttleboard frameG, H, and moving the ratchetT, bevel gear S, S, shaft P,worm gear R, R, and… … Section XVI. CONSTRUCTION AND DEVICES. Mixing, Testing, Stump and Pile Pulling, Tackle Hooks, Pile Driving^Dumping Cars, Stone Grips, Derricks, Conveyer, Timber Splic-ing, Roof and Bridge Trusses, Suspension Bridges. 1444. POST AUGER.—Often made with asingle turn to the blade. Used also for…
Mechanical movements
