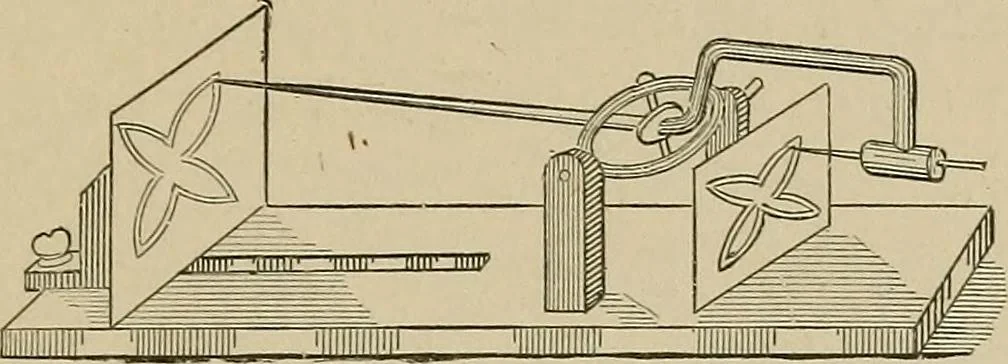

1531J. EIDOGRAPH.—An instrument of precisionin reproducing drawings,reduced or enlarged. Sim-ultaneous motions are trans-mitted from the tracer to^ the pencil through the mo-tion of pulleys on the cen-tral beam operated by asteel band. DRAUGHTING DJEVICES. 369 … extended for any proportion. 1531^. TRACING BAR.—The yoke-shaped needlebar has tracing points inhne with the gimbal ringbearing. The points may be
