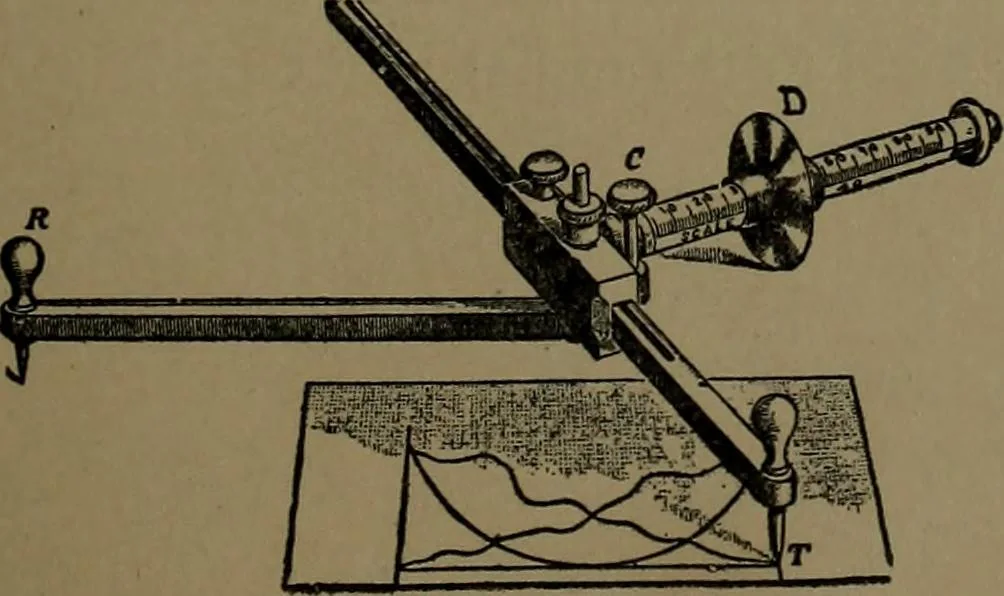

wheel indicate the number of revolutions of the rolling disc. 156. LIPPINCOTT PLAN.IMETER.-R is the fixed point?.T the tracer; ^ is a smooth roundarm on which a scale is laid offfrom the axis; D is a disc with afree motion on the scaled arm. … 52 MEASUREMENT OF POWER.
