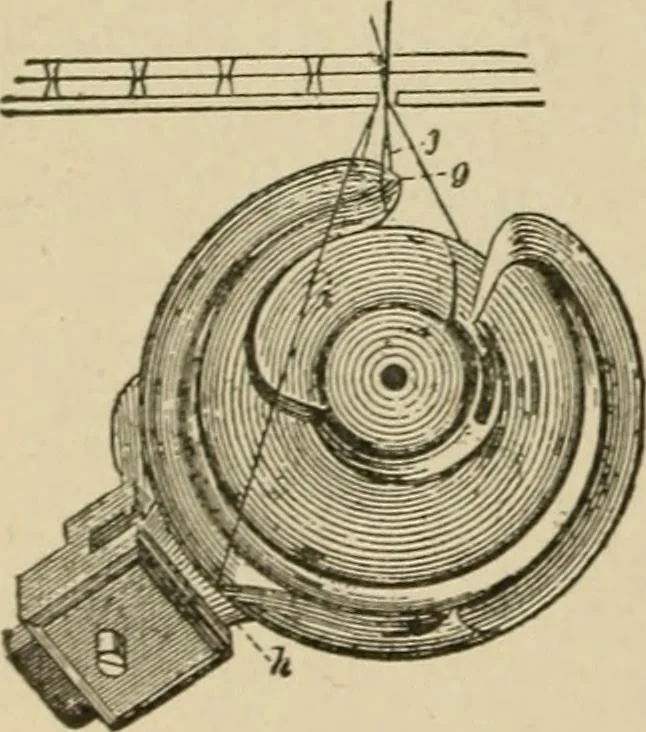

An illustration from Mechanical movements, powers, devices and appliances;, 1903, leaf 389 — 1575. SEWING-MACHINEHOOK AxN^D BOBBIN, Wheeler & Wilson model.A, the hook; C, bobbin ; D,case ; B, spindle and carrierhook. … 1576. HOOK OF THE WHEELER& WILSON SEWING-MACHINE.—The hook is rotated by the shaft, catches theneedle loop, and carries the thread around adisc bobbin^ MISCELLANEOUS DEVICES. 381 SPmiPINHtlUlEI)
