The principles of pattern making, written specially for apprentices and students in technical schools (1900)
Horner, Joseph Gregory, 1847-1927 · London, New York, Pitman · leaf 67

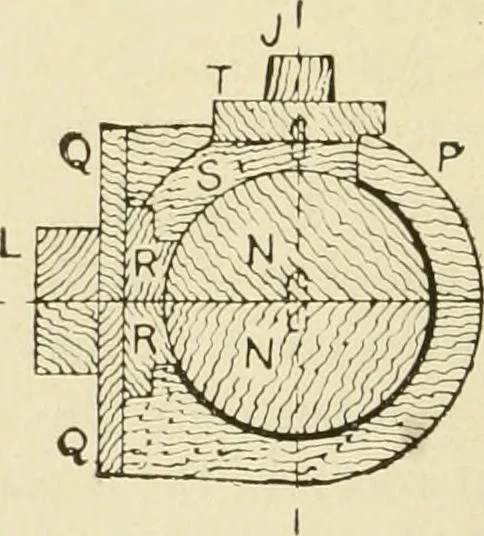

4 r-, fyf/j/JlNM/JIIM i < v I-FP--V • VMMi CC >MMJ Fig. 42, Cylinder Pattern-Front View. Fig. 43. Cylinder Pattern—CrossSection A-A, Fig. 41. with the belt uppermost. There are also sundry coreprints, E, F, G, H, J, K, L, corresponding in positionwith holes in the castings. Another matter is… … -M Fig. 44. Cylinder Pattern—Cross Section B-B, Fig. 41. AN ENGINE CYLINDER. 57 say under 6 or 7 diameter, this is made of solid wood,dowelled of course, in the central longitudinal plane.When of larger diameter it is lagged up in the mannerillustrated in Fig. 24, p. 40. The two halves aresecured…
Patternmaking
