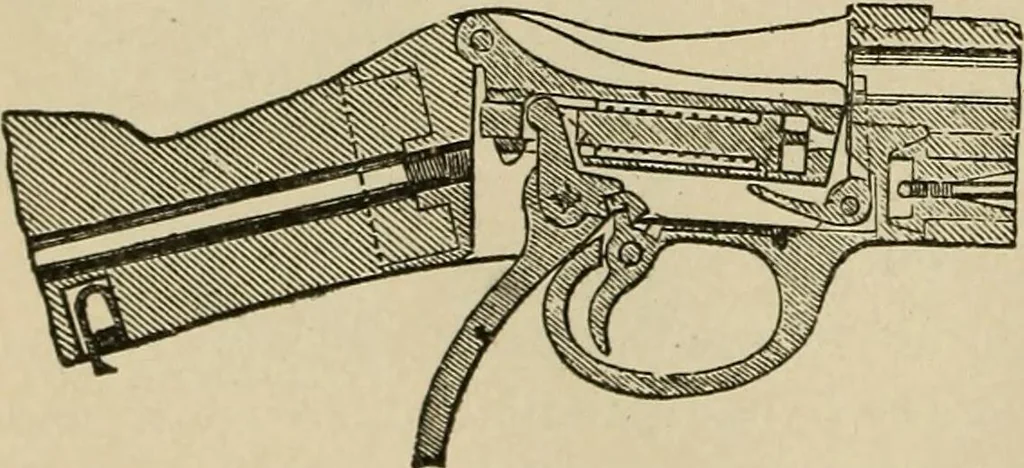

1638. GUN LOCK.—I, lock plate;2, hammer; 3, mainspring; 4, tum-bler; 5, sear or trigger lever; 6, searspring. 1639. COLT CYLINDER REVOLVINGDEVICE for firearms. a^ the pawl thatcatches the circular ratchet ^; <r, a spring thatpushes the pav/1 into the teeth of the ratchet;D, the hammer butt to… … 164T. MARTINI-HENRY RIFLE.—The breech block is pivotedat the rear end and :s thrownup or down by the lever atthe rear of the trigger guard.A spring plunger in thebreech block, let go by thetrigger, explodes the charge.
