Mechanical movements, powers, devices and appliances; (1903)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 404

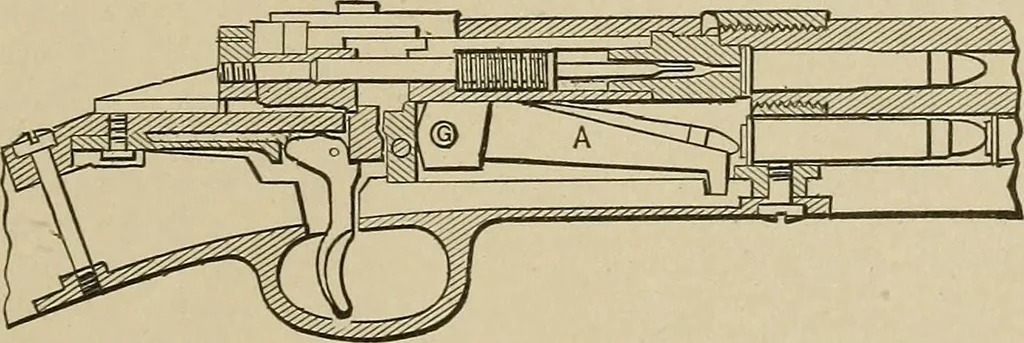

LEBEL RIFLE.— Magazine under thebarrel in the extensionof the stock. A slidingbreech block and pis-ton hammer. … 1647 MAUSER RIFLE.— Magazine in theforestock. The slid-ing breech blockencloses the firingspring plunger andraises the cartridgelever A. 39^ MISCELLANEOUS DEVICES. positionhammer 1648. WINCHESTER MAGAZINE RIFLE.— The breech lock slidesin line with the barrelby a toggle link, oper-ated by the breech…
Mechanical movements
