Mechanical movements, powers, devices and appliances; (1903)

Hiscox, Gardner Dexter, 1822?-1908 · New York, The N.W. Henley & co. · leaf 62

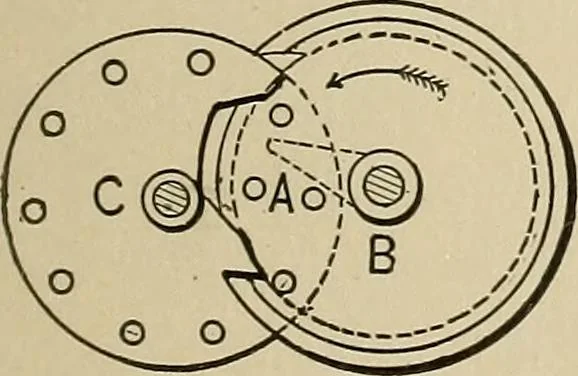

An illustration from Mechanical movements, powers, devices and appliances;, 1903, leaf 62 — 165. INTERMITTENT ROTARY MO-TION, for counters and meters. The tappetA, revolving with the wheel C, carries the wheelD one pin notch per revolution. The pawl bis released by the notch in the wheel C whilethe tappet is in contact with the pin. … 166. INTERMITTENT ROTARY MO-TION, for counters and meters. B, drivingwheel, the rim of which has an entering andexit notch for pins in the driven wheel andlocks the wheel C at each revolution of wheel B- 54 MEASUREMENT OF POWER.

Mechanical movements
