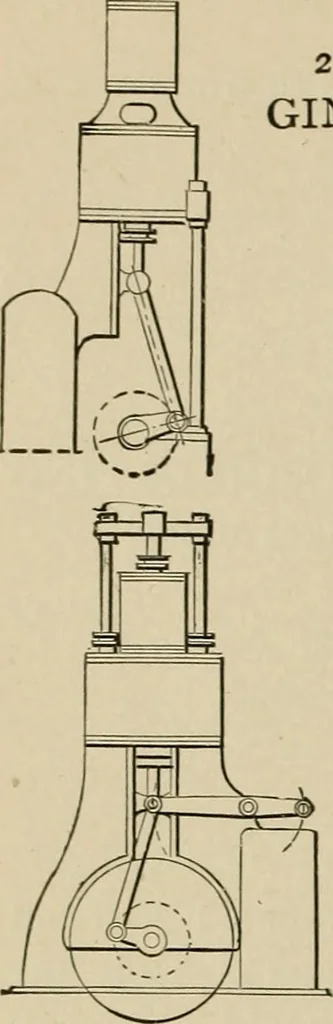

e eccentric strap,through a short connecting rod, oper-ates the valve gear of each cylinderalternately. 230. THREE-CYLINDER ENGINE, Brotherhood type. Steam is admitted tothe central chamber with equal pressure onall the pistons. The rotary-disc valve is oper«ated by the crank-pin, giving steam… … 232. TANDEM COMPOUND VERTICALENGINE, with cross-head and two piston rodsfor low-pressure piston ^^ f^ 233. COMPOUND ENGINES fort^vin screws.There may be one or two pair of compound cyUn-ders. The dotted lines represent cylinders of thetandem model.
