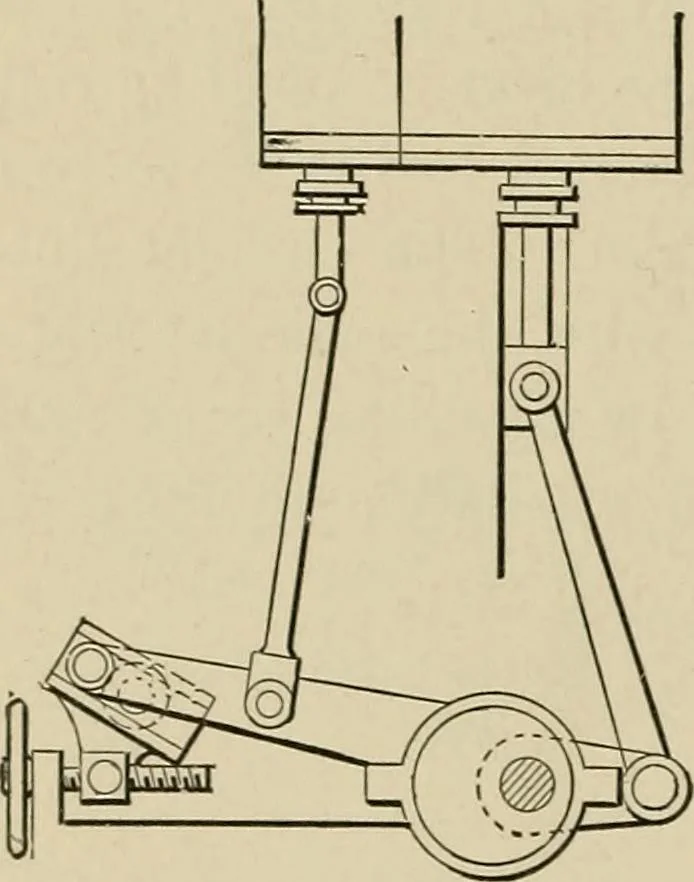

259. BREMME VALVE GEAR withsingle eccentric. The eccentric arm is rockedby the double link connection and is reversedby throwing the link joint over by the handscrew and sector arm, not shown in cut. … 260. SINGLE ECCENTRIC VALVEGEAR, with variable travel, adjustable bya hand-wheel. The eccentric drives ablock in a slotted link, which is rocked on acentral pivot by the screw for varying thethrow of the valve.
