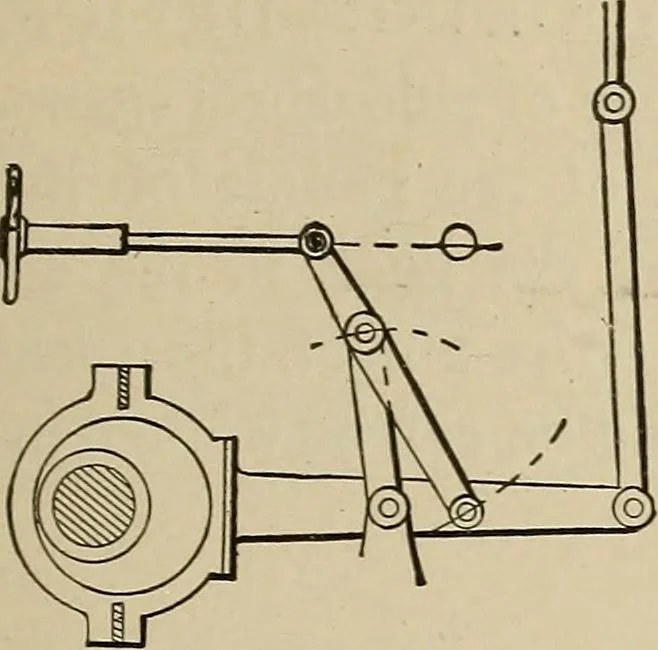

262. VALVE GEAR of a Cor-nish engine, with trip poppetvalves for steam. The governorreleases the valves by varyingthe position of the vertical barsconnected to the rocking wristplate. Exhaust valves are oper-ated from the eccentric throughthe lever that operates the steam valves. STEAM POWER. 77 … 263. VARIABLE EXPANSION GEAR, with one eccentric. The movement of thefulcrum of the eccentric bar lever by thescrew changes the throw of the valve.
